Description

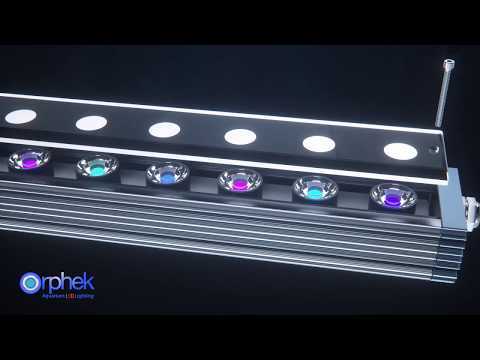

OR3 Red Plus 150 / 120 / 90 / 60 Grow/ Refugium LED Bar
Compatible with the Osix and iCon Dim
- All OR3 60 & 120 models are compatible with the Osix and iCon Dim
- Normal OR3 90 & 150 models are NOT compatible with the Osix and iCon Dim,
- For Order or Upgrade OR3 90 & 150 to dim version for Osix and iCon Dim , Contact us !
Orphek has been over the years progressively introducing new benefits and fine tuning to its aquarium LED lighting bars.
This third generation of Orphek Aquarium LED Bars - the OR3 Freshwater Planted - is a mind-blowing product that comes with a number of significant improvements and valuable changes:
- WIDE ORANGE RED AND INFRA RED SPECTRUM 580-780nm OPTIMIZED TO GROW MANY TYPES OF MACROALGAES.
- NEW CUSTOMIZED 5W WIDE RANGE DUAL CHIP POWER LEDS (same as the Atlantik iCon!).
- A LED BAR MADE OF HIGH QUALITY ALUMINUM ALLOY AND 8MM ACRYLIC TOP.
- GREATEST PAR LONGEVITY OF THE MARKET.
- OUTSTANDING VERSATILITY: 4 DIFFERENT SIZES TO MEET ANY NEEDED LIGHTING LAYOUT AND COVERAGE.
THIS IS WHY OUR OR3 LED BARS ARE A FEVER AMONG HOBBYIST:
They are slim, resistant, versatile and beautiful to display!
- You can combine the OR3 LED Bars with Orphek Atlantik /Compact to have an even more amazing tank!
- You can combine your OR3 LED Bars with other brands.
- You can combine or completely substitute T5!
- You can add as many as you wish.
- You can mount them with our fixing brackets for a sleek layout.
WHY YOU WILL ALSO FALL IN LOVE WITH OUR OR3 LED BARS:
THE SPECTRUM:
- Best/even distribution of light for grow/refugium ever developed!
- Best for enhancing beauty and growth of both ornamental and functional macroalgae.
THE LEDS:
OR3 Red Plus Grow /Refugium LED Bars excel in performance because Orphek uses only best LEDs in the market! And now you are getting the same LEDs we are offering in our Atlantik iCon fixtures!
It means you are getting new:
- Customized high efficiency 5w wide range Dual-Chip power LEDs more technologically advanced therefore, more efficient!
- Optimized different types of LEDs for maximum photochemical efficiency.
LONGER LIFE SPAN:
- Our new LEDs will last longer than the previous Orphek LEDs because we have improved its life span!!
- Running at 50% our new 2022 model 5w Dual-Chip advanced LEDs are more resistant to higher heat and it offers the highest PAR longevity with really minimum loss over the years.
THE MOUNTING OPTIONS:
-
Your OR3 Freshwater Planted comes with a hanging kit with: 2 mounting brackets and 2 wire hanging cables assembly - FREE OF CHARGE
- You can assemble (max of 7 units) OR3 LED Bars together with Orphek Universal Fixing bracket - NOT INCLUDED
-
You can mount one unit of OR3 LED BAR with AURA - Aura is Orphek High End Acrylic Mounting Arms for Aquarium - NOT INCLUDED
What else you are getting with no extra cost!
- Long power cord with waterproof connector.
- A LED light bar that comes with a customized electric plug for your region.
FEATURES
QUANTITY OF LEDS & SPECTRUM
|
|
LEDS (QUANTITY/SPECTRUM) |
|
OR3 60 |
2 LEDS - 585 - 595nm / 2 LEDS 600 - 610nm 2 LEDS - 620 - 630nm / 6 LEDS 655 - 665nm 2 LEDS 670 - 675nm/ 2 LED - 680-690nm 2 LED - 730 - 740nm |
|
OR3 90 |
3 LEDS - 585 - 595nm / 3 LEDS 600 - 610nm 3 LEDS - 620 - 630nm / 6 LEDS 655 - 665nm 3 LEDS 670 - 675nm/ 3 LED - 680-690nm 3 LED - 730 - 740nm |
|
OR3 120 |
4 LEDS - 585 - 595nm / 4 LEDS 600 - 610nm 4 LEDS - 620 - 630nm / 12 LEDS 655 - 665nm 4 LEDS 670 - 675nm/ 4 LED - 680-690nm 4 LED - 730 - 740nm |
|
OR3 150 |
5 LEDS - 585 - 595nm / 5 LEDS 600 - 610nm 5 LEDS - 620 - 630nm / 12 LEDS 655 - 665nm 5 LEDS 670 - 675nm/ 5 LED - 680-690nm 5 LED - 730 - 740nm |
WEIGHT
|
|
NET WEIGHT (KG/LBS) |
GROSS WEIGHT (KG/LBS) |
|
OR3 60 |
1.20kg / 2.64lbs |
2.5kg / 5.51 lbs |
|
OR3 90 |
1.65kg / 3.68lbs |
3.0kg / 6.61 lbs |
|
OR3 120 |
2.30kg / 5.07lbs |
3.5kg / 7.71 lbs |
|
OR3 150 |
3.27kg / 7.20lbs |
4.5kg / 9.92 lbs |
SIZE & DIMENSIONS
|
|
SIZE (CM/INCHES) |
DIMENSIONS L/W/H (CM/INCHES) |
|
OR3 60 |
60cm / 24” |
63.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H ) 25” ( L ) X 1.97” ( W ) X 1.4” ( H ) |
|
OR3 90 |
90cm / 35” |
93.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H ) 36.8” ( L ) X 1.97” ( W ) X 1.4” ( H ) |
|
OR3 120 |
120cm / 48” |
123.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H ) 48.7” ( L ) X 1.97” ( W ) X 1.4” ( H ) |
|
OR3 150 |
150cm / 60” |
153.5cm ( L ) X 5.0cm ( W ) X 3.6cm ( H ) 60.4” ( L ) X 1.97” ( W ) X 1.4” ( H ) |
ELETRIC PARAMETER
|
|
POWER CONSUMPTION |
INPUT VOLTAGE |
OUTPUT CURRENT |
POWER FACTOR |
FREQUENCY |
|
OR3 60 |
30W |
DC30-65V |
450mA |
>90% |
50-60 Hz |
|
OR3 90 |
40W |
DC 40-82V |
450mA |
>90% |
50-60 Hz |
|
OR3 120 |
60W |
DC 30-65V |
900mA |
>90% |
50-60 Hz |
|
OR3 150 |
75W |
DC 35-71V |
1050mA |
>90% |
50-60 Hz |
